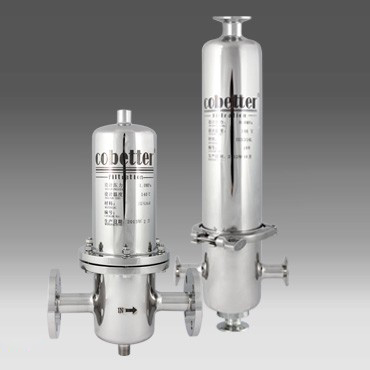

H-GCF Gas Filter Housing
Low Pressure

Cobetter H-GCF Filter Housing designed air/gas filtration in biotechnology, chemical, electronic and food & beverage industries.

The housings are compatible with Cobetter ]GPFL (PTFE membrane), GGFP (GF media), and Stainless Steel Filter Cartridges to meet the requirements for air/gas filtration.

Endcap design of the housing is Code7 (external 226 double o-ring with 2 locking tabs) which provides safe and secure sealing.

Configurations

  • External 226 double o-ring with 2 locking tabs Endcap ensures safe and secure sealing.
  • Housings flange connection designed in accordance with international standards.
  • Specification
  • Drawing
  • Ordering Information

Surface Finish

Polish TypeMirror Polish or Internal Electro-polished
Surface OptionInternal Ra: 0.3µm or External Ra: 0.4µm

Operating Conditions

Max. Operating Pressure0.6 Mpa (6 bar) / 1.0Mpa (10 bar)
Max. Operating Temperature135°C（275°F) / Design Temperature: 140°C
Steam SterilizationIn-situ / Autoclave @ 121°C / 30 min

Material of Construction

Housing Body304 or 316L
Vent / Drain304 or 316L
Vent Clamp304
Eyebolt304
Leg304
O-ring/GasketsSilicon, Viton, EPDM

Connection

Body ConnectionFlange / Tri-clamp
nlet / OutletFlange / Tri-clamp
Vent_
DrainG1/4”
Pressure GaugeM14*1.5

Drawing

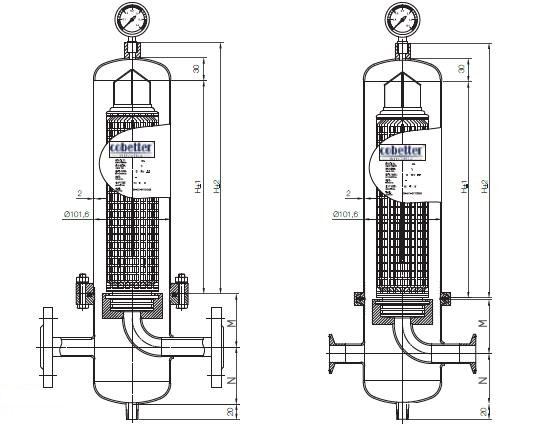

Drawings & Dimensions

1 round

5"10"20"30"
H170280540790
L220330590840

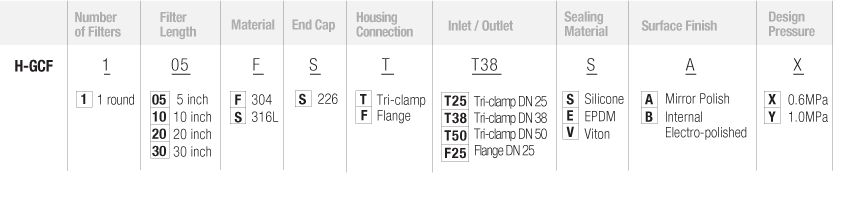

OrderingInformation
