Inline Filter

Cobetter Inline Filter Series provide small volume, easy connection, and simple design. They have been used in marking & coding printers, wide format printers, and textile printers. These filters can be used as printhead filters or inline connection filters to avoid system tube ink aggregate and to protect the printhead.


Stable Filtration Performance

316L stainless steel media provide good pressure endurance, broad chemical compatibility, low initial differential pressure drop, high flow rate.

Compact Filter Capsule Design

A compact form to minimize internal ink volume and waste. Ideal for situations where space is at a premium.

PHF has 3 Connection

Vent on PHF capsule, can drain gas.

  • Specifaction
  • Performance
  • Drawing
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Specifaction


Filter MediaPolypropylene/ 316L Stainless Steel
Cage / Core / EndcapPolypropylene



Performance


Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F
Removal Rating5.0μm / 10.0μm / 18.0μm / 20.0μm
25.0μm / 35.0μm / 50.0μm

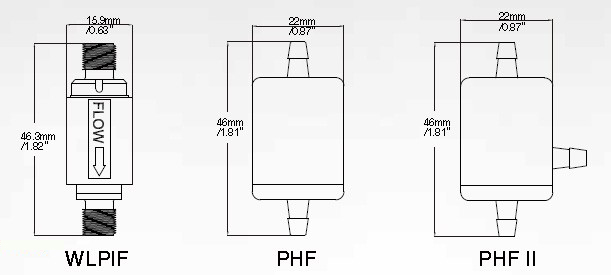

Drawing


WLPIFPHF
Diameter¢16mm¢22mm
Length46 mm46 mm
Inlet/Outlet1/8" jaco4mm Hose barb
Filtration Area1.88 cm²1.88 cm²

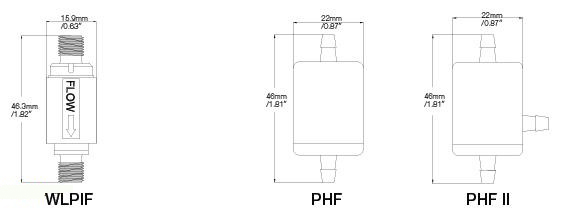

Drawing


ItemWLPIFPHF

Diameter¢16mm¢22mm

Length46 mm46 mm

Inlet/Outlet1/8" jaco4mm Hose Barb

Filter MediaPolypropylene/ 316L Stainless SteelPolypropylene/ 316L Stainless Steel

Cage / Shell / End CapPolypropylenePolypropylene

CorePolypropylenePolypropylene

Max. Allowable Pressure101PSI / 7bar101PSI / 7bar

Max. Allowable Temperature50°C / 120°F50°C / 120°F

Filtration Area1.88 cm²1.88 cm²
