Small Volume Capsule

Cobetter PHP Series Capsule Filter have been widely used in wide format printers and eco solvent / water based ink jet printers. This capsule features a high filtration area for long service life and low initial pressure drop, ideal for situations where space is at a premium. In addition to the standard polypropylene capsule, an opaque UV resistant capsule in polypropylene is also available

  • Specifaction
  • Performance
  • Drawing
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Specifaction

Small Volume, High Filtration Area

This capsule features a high filtration area design in small volume. Max filtration area can reach 20000mm² .

Easy& Quick Connection

The inlet & outlet connections for PHP series capsule are female Luer Lock connectors. Ideas for connecting tube internal size :3mm . 4mm and 6mm. PHP-H series capsule filter is installed with a Luer adapter, which is a all-in-one design, thus avoiding any leakages.

Non-Fiber Releasing Design

Thermal-bonded flber polypropylene forms a stable structure ,and ensure no flber releasing.

Thermal Welding Technology

No adhesive resins and ensure capsule filter excellent pressure endurance.

UV-resistant Housing Design

UV-resistant housing material-black color PHP capsule is special designed for protection from UV light.

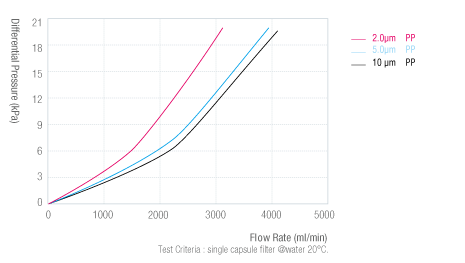

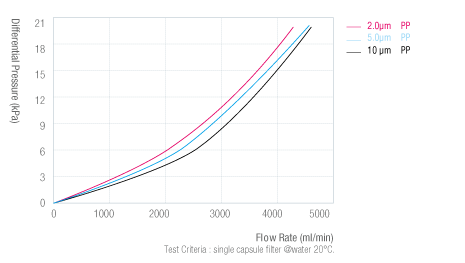

Flow Rate Characteristics

High Precision

High precision, multiple nano-fiber construction, providing over 99.8% removal efficiency, recommend for regular dye-cased inks and most pigment-based inks.

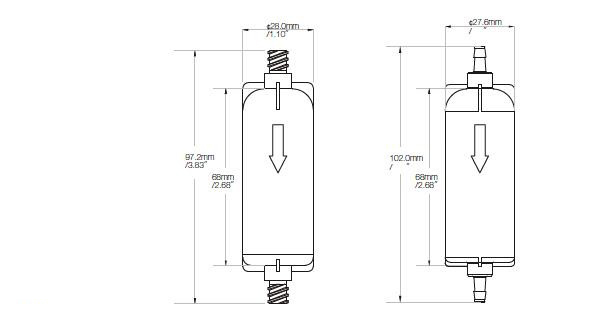

Drawing

Diameter¢ 28 mm¢ 27.6mm
Length97.2 mm102.0 mm
Inlet/OutletLuer Lock4mm Hose Barb
Filtration Area189 cm²189 cm²
Filter MediaPleated Polypropylene
Cage / Shell / End CapPolypropylene
Core316L Stainless Steel / Polypropylene
Max. Allowable Pressure101PSI / 7bar
Max. Allowable Temperature50°C / 120°F

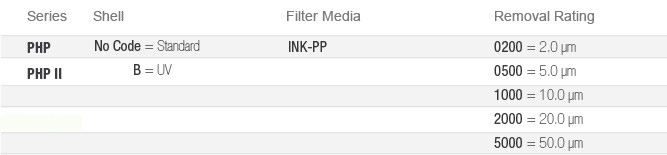

OrderingInformation
