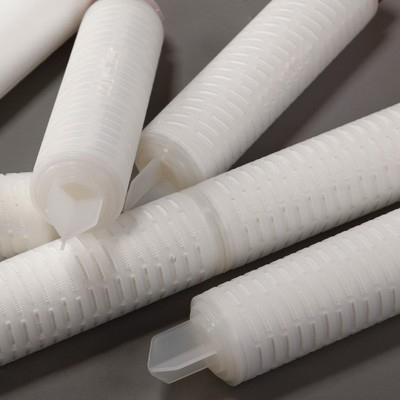

Cobetter BevClear® AB Filter Cartridges, composed of a polypropylene media, are absolute-rated with high dirt holding capacity, long service and high flow rates. This type of media provides absolute and reliable efficiency for particle retention in beverage filtration.
Material of Construction
| Filter Medium | Multi-Layer Melt Blown Polypropylene |
| Support Layer | Polypropylene |
| Core/Cage/End Caps | Polypropylene |
Operating Conditions
| Maximum Temperature | 80°C |
| Max.Differential Pressure | 5.0 bar / 21°C (forward flow) 2.0 bar / 80°C (forward flow) 2.0 bar / 21°C (reverse flow) |
| Steam Sterilization | ≥20 cycles (121°C/30 min @ Max.Differential Pressure of 0.5 bar) |
| Hot Water Sterilization | 85°C/30 min @ Max.Differential Pressure of 2.0 bar |
| Cleaning Solution | 2% NaOH Solution @≤ 65°C |
| Effective Filtration Area | 0.53 m² / Ф71-10 inch |
Food and Biological Safety
| Extractables | < 30mg per 10 inch |
| Endotoxins | < 0.25EU/mL |
Meets the requirements for food contact: European Regulation (EC) Number 1935/2004

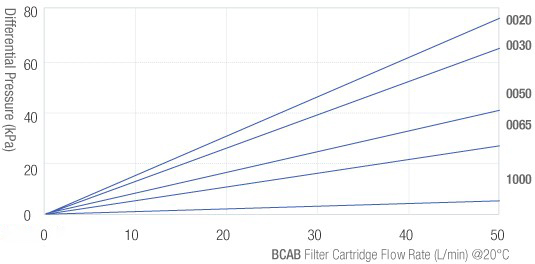

Flow Rate Characteristics
Retention Characteristic
| Retention Rates (%) | ||||||||
| 1.0μm | 3.0μm | 4.0μm | 5.0μm | 6.0μm | 7.0μm | 10μm | 20μm | |
| BCAB0020 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0030 | ≥99.98 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0050 | ≥99.90 | ≥99.98 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0065 | ≥99.50 | ≥99.90 | ≥99.98 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0080 | ≥99.20 | ≥99.50 | ≥99.90 | ≥99.98 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0100 | ≥99.00 | ≥99.20 | ≥99.50 | ≥99.90 | ≥99.98 | ≥99.99 | ≥99.99 | ≥99.99 |
| BCAB0300 | ≥99.00 | ≥99.20 | ≥99.50 | ≥99.90 | ≥99.98 | ≥99.99 | ≥99.99 | |
| BCAB0400 | ≥99.00 | ≥99.20 | ≥99.50 | ≥99.90 | ≥99.98 | ≥99.99 | ||
| BCAB0500 | ≥99.00 | ≥99.20 | ≥99.50 | ≥99.90 | ≥99.98 | |||
| BCAB0600 | ≥99.00 | ≥99.20 | ≥99.50 | ≥99.90 | ||||
| BCAB0700 | ≥99.00 | ≥99.20 | ≥99.50 | |||||
| BCAB1000 | ≥99.00 | ≥99.20 | ||||||
| BCAB2000 | ≥99.00 | |||||||
Tested by ISO 12103-1 A4 Coarse Test Dust
| BCAB | Removal Ratings | End Cap | Nominal Length | Seal Material | -F | ||
| [Ф71] | 0020=0.2μm | 0400=4.0μm | DOE=Double Open End | 05= 5" | S=Slilicone | ||
| 0030=0.3μm | 0500=5.0μm | HTC=222 O-ring/Flat (PBT Insert) | 10= 10" | E=EPDM | |||
| 0050=0.5μm | 0600=6.0μm | HTF=222 O-ring/Fin (PBT Insert) | 20= 20" | V=Viton | |||
| 0065=0.65μm | 0700=7.0μm | HSF=226 O-ring/Fin (PBT Insert) | 30= 30" | ||||
| 0080=0.8μm | 0800=8.0μm | SSF=226 O-ring/Fin (SS Insert) | 40= 40" | ||||
| 0100=1.0μm | 1000=10μm | SSC=226 O-ring/Flat (SS Insert) | |||||
| 0300=3.0μm | 2000=20μm | ||||||
