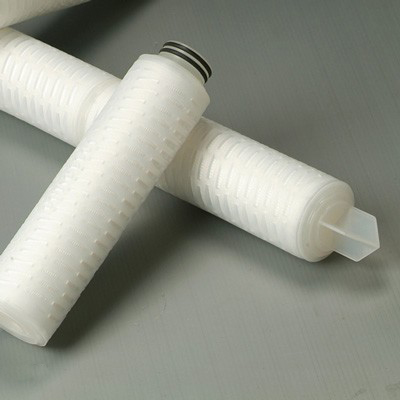

BevClear BW Filter Cartridges
Backwash Polypropylene Media · Particle Removal

Cobetter BevClear® BW Filter Cartridges are constructed of nanofiber media with support layers that allow maximum backwash cleaning efficiency. Characterized by its high dirt holding capacity and flow rates, they effectively remove particles. It is recommended for fine filtration in brewing applications.


Features and Benefits

  • Special design ensures backwash cleaning and therefore increases filter lifetime

  • Super fine nanofiber media provides high dirt holding capacity and retention efficiency

  • Provides defined porosity with high filtration area

  • No fiber releasing per FDA 21CFR

  • Complies with Food Contact Regulations: FDA 21CFR177-182 and 1935/2004 EC




  • Specification
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message


Materials of Construction

Filter MediumSuper fine Nano Fiber
Cage / SupportPolypropylene (Nanofiber)
Core / End CapsPolypropylene



Operating Conditions

Max. Temperature80°C
Max. Differential Pressure

5.0 bar / 21°C (forward flow)

2.0 bar / 80°C (forward flow)

2.0 bar / 21°C (reverse flow)

Steam Sterilization
(Saturated Steam)

≥20 cycles

(121°C/30 min @ Max. Differential Pressure of 0.5 bar)

Hot Water Sterilization85°C/30 min @ Max. Differential Pressure  of 2.0 bar
Cleaning Solution2% NaOH Solution @≤ 65°C
Effective Filtration Area0.6m² / 10 inch

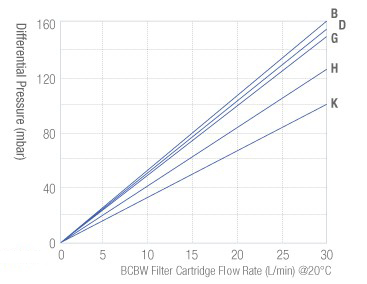

Flow Rate Characteristics




Efficiency>99.99%99.98%99.90%99%95%90%
β ratio10000500010001002010
B1.91.01.20.80.50.1
D2.22.01.91.20.90.5
G3.03.02.21.71.31.1
H5.05.03.42.72.01.7
K10107.75.64.13.8





Ordering Information

BCBW      Removal RatingsEnd CapNominal LengthSeal Material-F

[Ф64]B=PPBDOE=Double Open End05= 5"S=Slilicone


[Ф71]D=PPDHTC=222 O-ring/Flat (PBT Insert)10= 10"E=EPDM



G=HAGHTF=222 O-ring/Fin (PBT Insert)20= 20"V=Viton



H=HAHHSF=226 O-ring/Fin (PBT Insert)30= 30"




K=HAKSSF=226 O-ring/Fin  (SS Insert)40= 40"





SSC=226 O-ring/Flat (SS Insert)






STF=222 O-ring/Fin (SS Insert, 3 Tabs)
