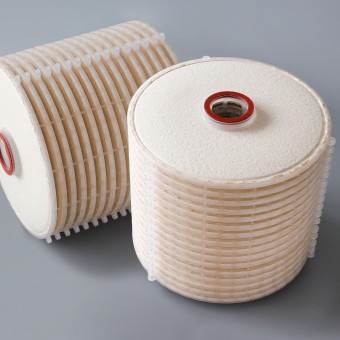

CSD Lenticular Filter

CSD Filter Series constructed of high quality lignocellulose material and inorganic filter aid. The inner 3-D crisscrossing structure allows it to function as a depth filter while providing excellent filtration efficiency, high dirt holding capacity, and longer lifetime.  Filter paper is produced automatic production lines.  All raw materials are tested using strict quality control procedures to ensure filter quality and performance during use.






  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message


Operating Conditions

Maximum Temperature80°C
Max.Differential Pressure2.4bar / 25°C
FlushPure water 50L/m²
Flow rate 20 lpm/m²
Steaming Sterilization (Autoclave)121°C / 30min



Materials of Construction

Filter MediumCellulose, Diatomaceous Earth
CagePolypropylene



Filtration Area

Number of LensesFiltration Area
12 " Diameter16" Diameter
70.7 m²/
90.9 m²2.1 m²
121.1 m²2.8 m²
141.3 m²3.2 m²
151.4 m²3.5 m²
161.5 m²3.7 m²


Ordering Information

    Removal RatingsEnd CapGradeNominal Length

Number of
Lenses

Seal
Materia
l

CSD 0004=0.04-0.2μmDOE=Double Open EndS=Standard12= 5"=7 LensesS=Silicone

0020=0.2-0.4 μmTC=222 O-ring/Flat (PBT Insert)P=Pharmaceutical  16=16"=12 LensesE=EPDM

0040=0.4-0.6 μm
F=Process Fluids30=30"M=14 LensesV=Viton

0060=0.6-0.8 μm

40=40"=16 Lenses

0100=0.8-1.5 μm





0150=1.5-3.0 μm
