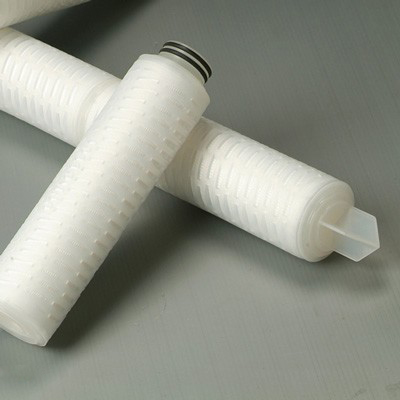

BevPure Filter Cartridges
Single-layer PES Membrane · Sterilizing Grade

BevPure® Filter Cartridges are specially designed to provide reliable sterilizing filtration at the most economical costs. Hydrophilic PES membrane filters require no pre-wetting and are ready to use. This filter is recommended for the sterile filtration of a wide range of liquids e.g. diluting water and beverages.


Features and Benefits

  • Inherent hydrophilic PES membrane
  • Each filter is individually Integrity Tested prior to factory dispatch
  • Bacterial Challenge Test with B.diminuta bacteria
  • Complies with Food Contact Regulations: FDA 21CFR177-182 and 1935/2004 EC





  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message


Materials of Construction

Filter MediumSingle-Layer PES Membrane
Cage / SupportPolypropylene
Core / End CapsPolypropylene


Operating Conditions

Max. Temperature80°C
Max. Differential Pressure

4.0 bar / 21°C (forward flow)

2.4 bar / 70°C (forward flow)

Bubble Point

BP: >0.34 MPa (water), 0.22 μm

BP: > 0.22 MPa(water), 0.45 μm

Diffusion Flow

DF: < 30 ml/min/10"@ 0.25Mpa(water), 0.22µm

DF: < 28 ml/min/10"@ 0.16Mpa(water), 0.45 μm

Steam Sterilization
(Saturated Steam)

≥200 cycles

(135°C/30 min @ Max.Differential Pressure of 0.3 bar)

Hot Water Sterilization85°C/30 min @ Max. Differential Pressure of 2 bar
Cleaning Solution2% NaOH Solution @ ≤65°C
Effective Filtration Area0.58m² / 10 inch


Reliable Microbiological Control

The primary purpose of this membrane filter cartridge in beverage filtration is to effectively remove product spoiling microorganisms

Typical Log Reduction Value(LRV)

B.diminuta

Lactobaccilus Brevis

Sasharomyces Cerevisiae

0.1µm

> 7/cm²

N/AN/A
0.2µm

> 7/cm²

N/AN/A

0.45µm

N/A

> 7/cm²N/A
0.65µmN/A> 4/cm²> 7/cm²
1.2µmN/AN/A> 7/cm²

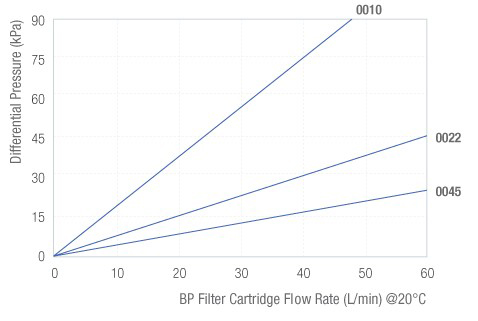

Flow Rate Characteristics


Ordering Information

    -RRemoval Ratings   End CapNominal LengthSeal Material  -F
BP      Blank 0010=0.1μmDOE=Double Open End05= 5"S=Slilicone

[Ф69]
0022=0.22μmHTC=222 O-ring/Flat (PBT Insert)10= 10"E=EPDM



0045=0.45μmHTF=222 O-ring/Fin (PBT Insert)20= 20"V=Viton




HSF=226 O-ring/Fin (PBT Insert)30= 30"





SSF=226 O-ring/Fin  (SS Insert)40= 40"





SSC=226 O-ring/Flat (SS Insert)






STF=222 O-ring/Fin (SS Insert, 3 Tabs)
