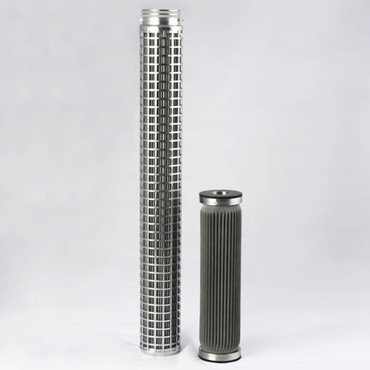

Cobetter PSSF® Stainless Steel Pleated Felt Filter Cartridges are composed of stainless steel sintered felt shaped during the pleating process. These filters have a large filtration area with high flow rates and low pressure drops. The unique stainless steel sintered felt is made from stainless steel fibers which have been sintered to form a high porous depth filtration material. PSSF Filter Cartridges features include a graded pore size from coarse (upstream) to fine (downstream), which results in a higher dirt holding capacity with excellent filtration efficiency and longer service life. These filters are widely used in steam filtration or liquids with high viscosities, e.g. sugars and syrups.
Materials of Construction
| Filter Media | 304/316 Stainless Steel |
| Cage / Support | 304/316 Stainless Steel |
| Core / End Caps | 304/316 Stainless Steel |
Recommended Continuous Operating Temperature Range | -75°C to +200°C Note: Temperature dependant on o-ring compound |
| Max. Differential Pressure | 5.0 bar / 21°C (forward flow) 2.0 bar / 21°C (reverse flow) |
| Hot Water Sterilization | 85°C/30min @ Max. Differential Pressure of 2 bar |
| Cleaning Solution | Reverse Rinse by Pure Water/Compressed Air @ ≤2bar; Ultrasonic Rinsing |
| Effective Filtration Area | 0.12 m² / 10inch |
Retention Rates: PSSF v. TIC Titanium Filter
| PSSF | TIC Titanium Filter | ||
| Material | SS Sintered Felt (no fiber releasing) | Metal Powder Metal Powder (will release after long term use) | |
| Strength | Pleated Structure High Temperature & Pressure Resistance | High Temperature (Sintered) Unstable Pressure | |
| Retention Rates | Absolute-Rated EFA: up to 0.12m² | Depth Filter EFA: 0.056m² | |
| Code | Removal Ratings(μm) | Pore Efficiency% | Initial Differential Pressure(KPa) | Absolute Removal Rating(μm) | Average Air Permeability (L/dm²min) | Flow Rate (m³/h) |
| 1 | 3.0 | 0.5 | 70% | 7.9 | 10 | 0.8 |
| 2 | 5.0 | 1 | 75% | 5.0 | 47 | 1.3 |
| 3 | 7 | 1.5 | 76% | 6.5 | 63 | 1.6 |
| 4 | 10 | 2 | 75% | 7.8 | 105 | 2.0 |
| 5 | 25 | 16 | 80% | 19.0 | 355 | 2.5 |
| 6 | 40 | 25 | - | - | - | - |
| 7 | 60 | 45 | - | - | - | - |
Testing Performed According to GB/T5453; Testing DP is 200Pa; Testing Medium is Air
Testing Liquid Viscosity is 1CP.S; Filter Tested with 60mm diameter and 300mm length; Testing Pressure is 1.5 bar
Bekaert Filtration Media
| Removal Ratings | End Cap | Diameter | Nominal Length | Seal Material | -F | |
| PSSF | 0001=0.01μm | DOE=Double Open End | D25=25mm | 05= 5" | S=Slilicone | |
| 0022=0.22μm | TC=222/Flat | D30=30mm | 10= 10" | E=EPDM | ||
| SC=226/Flat | D50=50mm | 20= 20" | V=Viton | |||
| L=Screw | D65=65mm | 30= 30" | ||||
| D70=70mm | 40= 40" | |||||
Notes on Cleaning
Ultrasonic cleaning is recommended rather than back flush cleaning due to its depth and porous filtration media construction.
