High Dirt Holding Capacity Gas Filter Cartridges

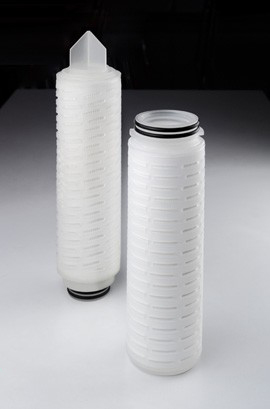

GTH Filter Cartridge Series

GTH Filter Cartridges are composed of super-fine pleated glass fiber media with an improved retention capacity. They are designed for use during pre-filtration and fine filtration of most gases.



Features and Benefits

  • High Dirt Holding Capacity

    Fiber construction provides superior dirt holding capacity

  • Low Pressure Drop

    Inherently hydrophobic Glass fiber membrane provides low-pressure drop.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaGlass Fiber
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C

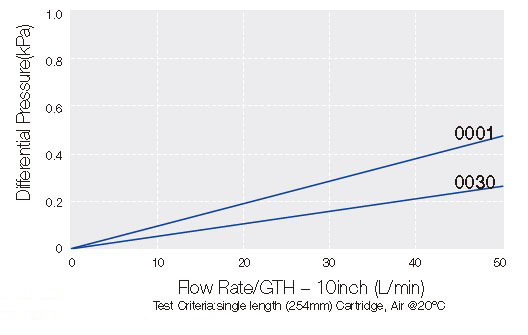

Flow Rate Characteristics

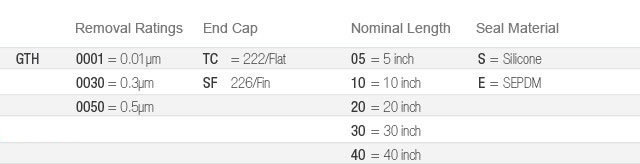

Ordering Information


GTHNGTHF
GTH1.jpgRemoval RatingsGTH2.jpgRemoval Ratings
0030  =  0.3μm
0050  =  0.5μm
0100  =  1.0μm
0300  =  3.0μm
0500  =  5.0μm		0030  =  0.3μm
0050  =  0.5μm
0100  =  1.0μm
0300  =  3.0μm
0500  =  5.0μm
