Photoresist Specialized Filter Cartridges

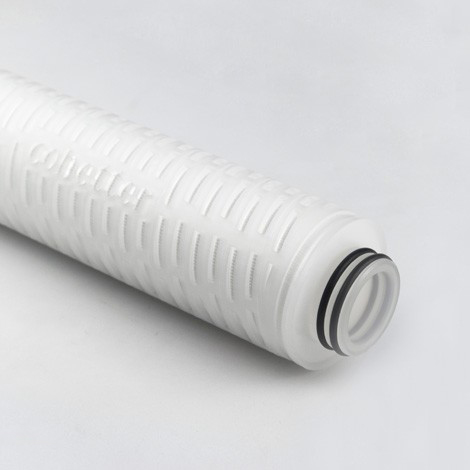

PRNA Filter Cartridge Series

PRNA Filter Cartridges have a nano-fiber multilayer design that provides high porosity which are good for capturing various shaped particles especially photoresist filtration.

Feature and Benefits

  • Nano-fiber Design with High Porosity

    A nano-fiber design results in high porosity.

  • Graded Structural Design

    Graded pore size with larger pores outside and tighter pores inside increase dirt holding capacity and extended filter lifetime.

  • No Adhesives, Binding or Surfactants Used: Low Extractables


  • Excellent Removal Efficiency

    5 nano-fiber layers yield excellent removal efficiency of colloids and particles.

  • Small Volume Customization

    Available in a capsule filter design for small volume filtration which results in reduced operating costs.

  • All Polypropylene Design

    Excellent Chemical Compatibility.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPP
End cap / Core / CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C

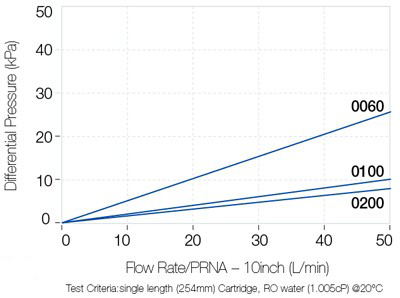

Flow Rate Characteristics





Ordering Information

    Removal Ratings   End CapNominal LengthSeal Material

PRNA

0020=0.2μm0500=5.0μmTC=222 / Flat05= 5"P=FEP-E



0030=0.3μm1000=10.0μm
10= 10"E=EPDM


0050=0.5μm

20= 20"



0060=0.6μm

30= 30"



0080=0.8μm

40= 40"



0100=1.0μm






0150=1.5μm






0200=2.0μm
