Photoresist Low Extractable Filter Cartridges

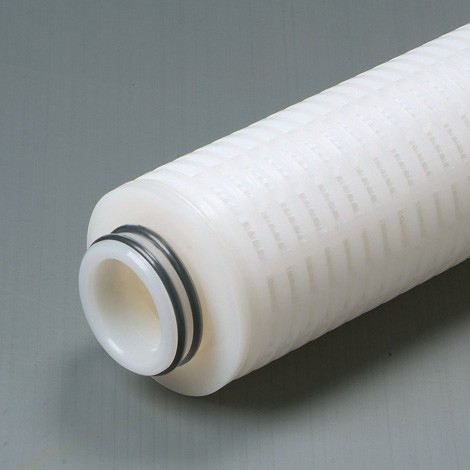

PRNF Filter Cartridge Series

PRNF Filter Cartridges are constructed with PTFE membrane and HDPE cage, which provides excellent chemical compatibility.

Features and Benefits

High Removal Efficiency

PTFE membrane yields excellent removal efficiency of colloids and particles
.

Low Extractable

No adhesives or surfactants are used which results in an excellent compatibility with the membrane and HDPE cage.

Available in Various Pore Sizes

Pore sizes from 0.02μm to 10um are available according to customer’s requirements and specifications. In addition, pore size can be customized upon request.


Each Element is Individually Integrity Tested

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPTFE
End cap /Core/CageHDPE
Max. Operating Temperature60°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 60°C


Flow Rate Characteristics

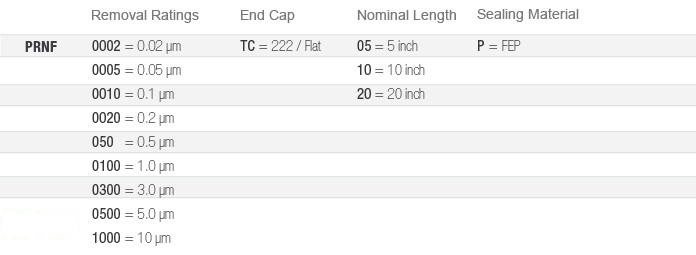

OrderingInformation
