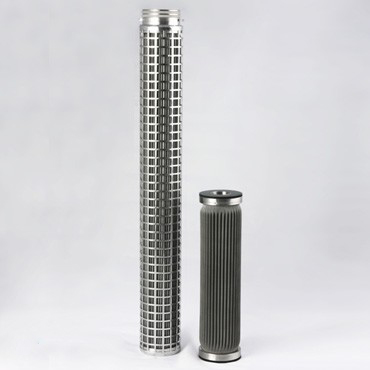

PSSF Stainless Steel Pleated Felt
Filter Cartridge

Cobetter PSSF Stainless Steel Pleated Felt Filter Cartridges constructed with stainless steel sintered felt and shaped during the pleating process. These filters have a large filtration area.

The stainless steel sintered felt is made from stainless steel fiber, which is then sintered under high temperatures to form the porous depth filtration material.

PSSF Filter Cartridges features include a graded pore size from coarse upstream to fine downstream, which results in a higher dirt holding capacity and longer service life.

PSSF II is made of “Bekaert” stainless steel felt and achieves close to absolute retention efficiency.


Features and Benefits

  • ALL-Stainless Steel Construction
  • Free Particle Release
  • High Temperature; Corrosive and Oxidation Resistant
  • Porous Depth Filtration Media
  • Unique Pleating Technology
  • Inside Support Layer
  • Outside Protection Net Available
  • High Dirt Holding Capacity and Long Service Life
  • Specification
  • Performance
  • Ordering Information

Materials of Construction

Inside Support Layer304/316 Stainless Steel
Filtration Medium304/316 Stainless Steel
End Cap304/316 Stainless Steel

Outside Protection

Net(Optional)

Outside protection net recommended

when the operating pressure is up to 0.2 MPa


Configurations

Double Open-End (DOE)
Single Open-End (SOE)


Operating Conditions

Max. Differential Pressure5.0 bar
Max. Operating Temperature480°C

Parameters

CodeRemoval Ratings(μm)Pore Efficiency%Initial Differential Pressure(KPa)Absolute Removal Rating(μm)Average Air Permeability (L/dm²min)Flow Rate (m³/h)
13.00.570%7.9100.8
25.0175%5.0471.3
371.576%6.5
631.6
410275%7.81052.0
5251680%19.03552.5
64025----
76045----

Testing Performed According to GB/T5453; Testing DP is 200Pa; Testing Medium is Air

Testing Liquid Viscosity is 1CP.S; Filter Tested with 60mm diameter and 300mm length; Testing Pressure is 1.5 bar

Bekaert Filtration Media

Length and Area

Nominal Length

Filtration Area

Domestic Felt                                    Bekaert Felt

5 in. (127 mm)0.096 m²0.075 m²
10 in. (254mm)0.19m²0.15m²
20 in. (508mm)0.38 m²0.30 m²
30 in. (762mm)0.57 m²0.45 m²
40 in. (1016mm)0.76m²0.60m²

Length and Other Sizes Are Customizable

Tested Filter Diameter is 65mm


Ordering Information

    Removal Ratings   End CapNominal LengthDiameter   Seal Material

PSSF

0200=2.0μmDOE=Double Open End05= 5"D25=25mmS=Slilicone  -E



0500=5.0μmTC=222 / Flat 10= 10"D30=30mmE=EPDM

0700=7.0μmSC=226 / Flat20= 20"D50=50mmV=Viton

1000=10μmSF=226 / Fin 30= 30"D65=65mmP=PFA / Viton

2500=25μm
40= 40"D70=70mmF=PTFE

4000=40μm





6000=60μm
