Electronic Grade Low Extraction Filter Cartridges

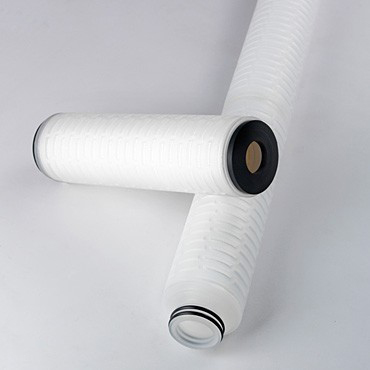

WEPP Filter Cartridge Series

WEPP Filter Cartridges have a high retention efficiency which makes it suitable for use in cooling water and process water filtration applications.


Feature and Benefits

Low Leachables

The use of high-purity materials with no adhesives or binding agents in the production process solves leaching problems caused by the use of other materials.

Available in a Wide Range of Pore Sizes

Wide range of pore sizes from 0.1um-25um to meet different filter requirements and specifications

Economical

Used as pre-filter due to its high filtration efficiency and performance and low filter cost.

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPP
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C
Filter Area0.1-5.0μm     0.61 m² / 10 inch
 10-25μm      0.64 m² / 10 inch

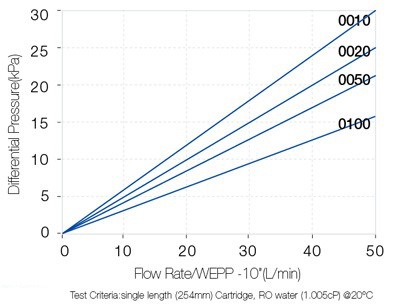

Flow Rate Characteristics

OrderingInformation
