H-FRP Housing
High Anti-Corrosive Performance Economical Design

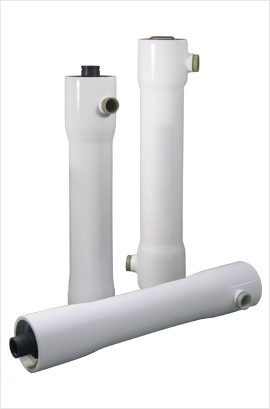

Cobetter H-FRP Filter Housing designed for use with Cobetter HF-150 High Flow Filter.Since it is a separate unit, it can easily be connected and used in conjunction with a reverse osmosis system. Due to its high anti-corrosive ability and high strength glass fiber reinforced plastic (FRP), this housing is suitable and advantageous for use in seawater desalination.



Features and Benefits

  • Modular Design - provides easy connection and disassembly Attractive Appearance
  • Valve on Branch Tube Allows for Filter Change-out – system remains running
  • Available in Horizontal or Vertical Design
  • Specification
  • Performance
  • Ordering Information

Surface Finish

Polish TypeMirror Finsh;Internal Mirror Finish Outer sand Blast
Surface OptionInternal Ra 0.6μm; External Ra 0.8μm


Operating Conditions

Max. Operating Pressure0.6Mpa(6 bar) /1.0Mpa(10 bar)
Max. Operating Temperature135℃(266℉)
Steam Sterilizationnull


Material of Construction

Housing Body304;316L
Vent/Drain304;316L
Clamp304
Leg304
O-ring / GasketsSilicon, Viton, EPDM


Connection

Body ConnectionSwing Bolt/C-Clamp
Inlet / OutletFlange
VentG1/2"
Drail G1"
Pressure GaugeM14*1.5

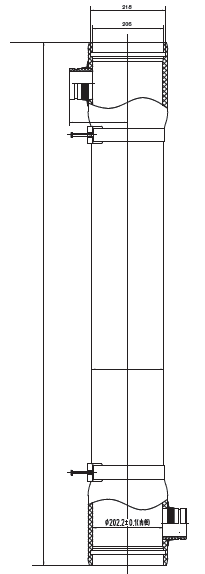

Drawing

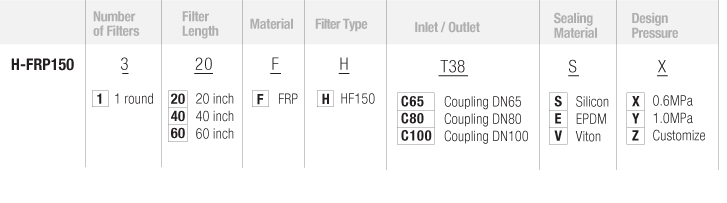

Ordering Information
