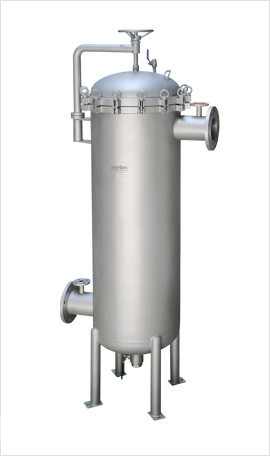

H-HF150 Series High Flow Rate Industrial Filter Housing
Large High Flow Rate Filter Housing

Cobetter H-HF150 Series Industrial Filter Housing designed for use with HF150 Series Filter Cartridges and mainly used for large fluid (liquid/water) flow rate applications, especially in water treatment. Designed for large flow rates, this filter housing requires a small area for installation. It is cost efficient and easy to operate when compared to traditional filter housings. It is available in 304 or 316L stainless steel, which ensures strong corrosion resistance for a wide range of applications.

  • Specification
  • Performance
  • Ordering Information

Surface Finish

Polish TypeMirror Polish;Internal mirror Finish Outer sand
Surface OptionInternal Ra 0.6μm; External Ra 0.8μm


Operating Conditions

Max. Operating Pressure0.6Mpa(6 bar) /1.0Mpa(10 bar)
Max. Operating Temperature135℃(266℉)
Steam Sterilizationnull


Material of Construction

Housing Body304;316L
Vent/Drain304;316L
Clamp304
Leg304
O-ring / GasketsSilicon, Viton, EPDM


Connection

Body ConnectionSwing Bolt/C-Clamp
Inlet / OutletFlange
VentG1/2"
Drail G1"
Pressure GaugeM14*1.5

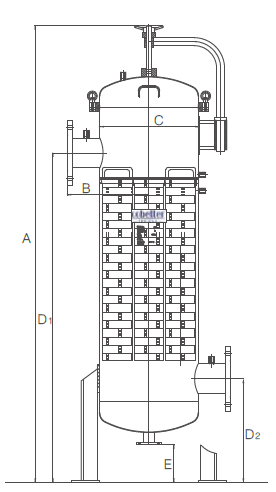

Drawing
下载 (1).png


1 round
3 round
4 round
5 round

40"60"    |40" 60"    |40" 60”    |40"60"
Height(A)15552055  |21702670   |22002700  |25803080
Inlet to Body Center(B)250250    |380
380     |400400    |410410
Diameter(C)219219    |400400     |450 450   |550550
Inlet to Ground(D1)13551855  |16552155   |
21752675  |18402340
Inlet to Ground(D2)
335335    |405
405     |420420    |550550
Outlet to Ground(E)150150    |150150     |
200200    |200200



6 round
7 round

40"60"    |40" 60"
Height(A)26003100  |26003100
Inlet to Body Center(B)455455    |455
455
Diameter(C)550550    |550550
Inlet to Ground(D1)18602360  |18602360
Inlet to Ground(D2)
570570    |570
570
Outlet to Ground(E)200200    |200200

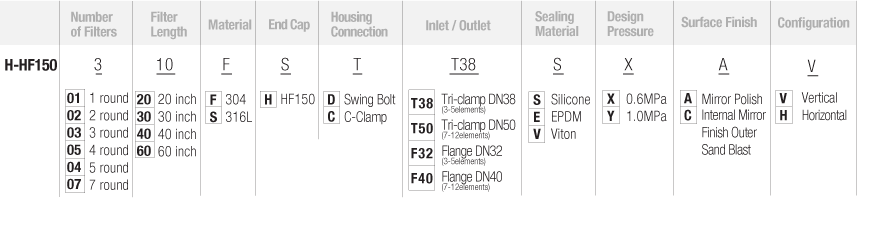

Ordering Information

201602150616484986 (1).png
