AdvanLife Filter Cartridges--Cobetterfiltration

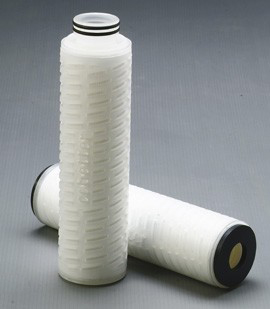

AdvanLife Filter Cartridges
Highly Asymmetric PES Membrane · Sterilizing Grade

Cobetter AdvanLife®  Filter Cartridges feature a unique single-layer, asymmetric hydrophilic PES membrane characterized by excellent throughput and high durability and designed for use in various applications including pharmaceutical / biological and beverage filtration. High flow rates, when compared to other sterilizing grade filter cartridges, assure an economical design.



Features and Benefits

  • Highly asymmetric polyethersulphone membrane makes high dirt holding and longer service life.
  • High surface area design provides excellent flow rates.
  • Available in absolute ratings from 0.1 to 1.2 microns for a range of precise size removal.



  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Raliable Microbiological Control

The primary purpose of a membrane filter cartridege in beverage processing is to effectively control spoilage microorganisms.

Typical Log Reduction Value(LRV)

B.diminutaLactobaccilus BrevisSasharomyces Cerevisiae
0.1μm>7/cm2N/AN/A
0.2μm>7/cm2N/AN/A
0.45μmN/A>7/cm2N/A
0.65μmN/A>4/cm2>7/cm2
1.2μmN/AN/A>7/cm2

Log Reduction Values are calculated using the following formula:LRV=log10(total number of organisms entering the filter/total number of organisms exitng the filter )


Integrity Testing Parameters

The Integrity Test is a non-destructive test that can be performed by the user to ensure the filter is installed correctly ready for operation


0.1μm0.2μm0.45μm0.65μm1.2μm

Diffusional Flow

(10" Cartridge)

<60ml/min

@ 4 bar

<30ml/min

 @ 2.5 bar

<28ml/min

 @ 1.6 bar

<20ml/min

 @ 1.0 bar

<6ml/min

@ 0.8 bar

Bubble Point>3.8 bar>3.2 bar>2.8 bar>1.8 bar>0.8 bar


Materials of Construction

Filter Medium

0.1,0.2,0.45,0.65μm
1.2μm

Polyethersulfone
Polysulfone

SupportPolypropylene
Core/Cage/End CapsPolypropylene
Effective Filter Area0.76m2/ Φ71-10 inch


Operating Conditions

Maximum Temperature90℃
Max. Differential Pressure

4 bar/ 21℃
2.4bar/ 70℃

Steam Sterilization (Autoclave)121℃/ 30min
Hot Water Sterilization85℃/ 30min

Flow Rate Characteristics

Flow Rate

(LPM)

Differential Pressure(Kpa)
APSB-F 0.220.45
0.651.2
1010.410.28.95.6
2020.820.417.811.2
3031.330.526.816.8
4041.740.735.722.4
5052.150.944.658.0
6062.561.153.533.6

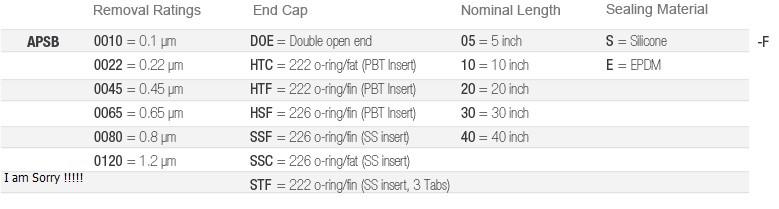

Ordering Information
