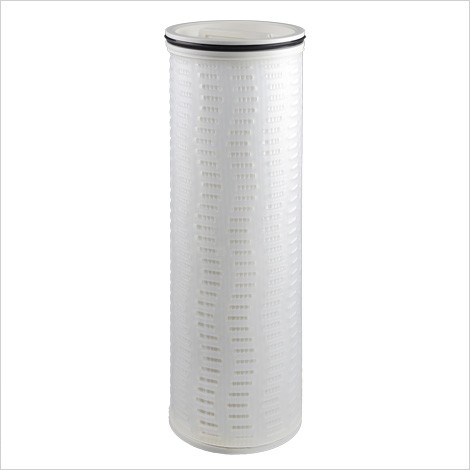

BevClear HF Filter Cartridges
Pleated High Flow Filter

BevClear® HF Filter Cartridge is a large diameter filter for high flow applications.  The filter has a single-open pleated construction with a 6’’/152mm diameter, high filtration area, and high flow rates up to 90m3/hr. It can be used in a wide variety of application with large flow rate requirements and short downtime for change-out.



Features and Benefits

  • Large filtration area provides high flow rates combined with low pressure drops and long service life
  • The unique media structure ensures high particle retention rates
  • Flow rate configuration from inside out ensures that all contamination is held within the single-open end of the filter
  • Quick and easy change-out.
  • Complies with Food Contact Regulations: FDA 21CFR177-182 and 1935/2004 EC

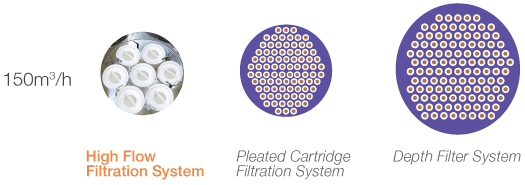

Comparison of Housing Dimension and Element Number





  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message



Materials of Contruction

Filter Media

Pleated Polypropylene depth structure

Support/ Drainage

Polypropylene

End CapsGlass-Filled Polypropylene
Core

Polypropylene

Outside MaterialPP Cage
Maximum Temperature

80°C

Max. Differential Pressure

4.0 bar @ 21°C

1.5 bar @ 80°C



Operating Conditions


LongthDesign Flow RateMax Flow RateEffective Filtration Area
6" *20"15 m³ /h30 m³ /h2.6 m²
6" *40"30 m³ /h60 m³ /h5.2
6" *60"45 m³ /h90 m³ /h7.8
6" *80"60 m³ /h120 m³ /h10.4

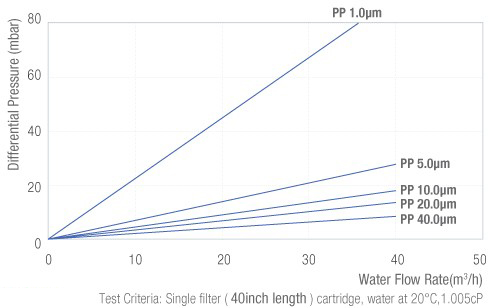

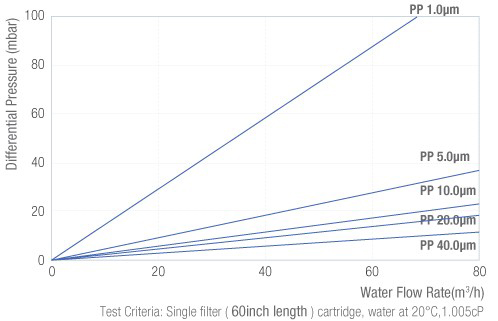

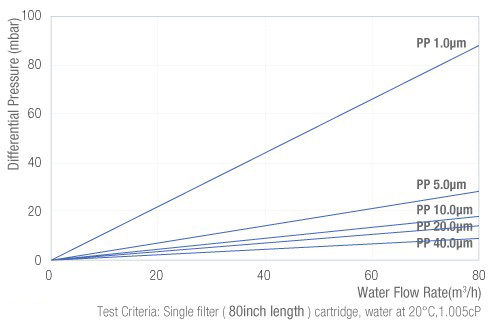

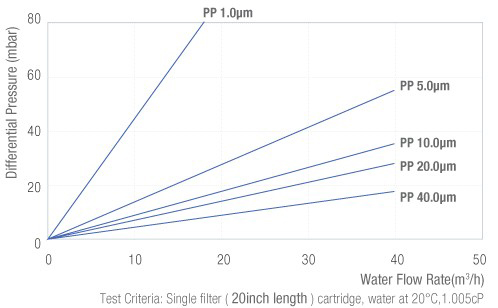

Flow Rate Charateristics














Ordering Information

    Filter Media  Removal RatingsNominal LengthSeal Material-F
BCHF
PP0045=0.45μm0500=5.0μm  05= 5"S=Slilicone



0050=0.5μm1000=10μm10= 10"E=EPDM



0065=0.65μm1500=15μm20= 20"V=Viton



0080=0.8μm2000=20μm30= 30"




0100=1.0μm4000=40μm40= 40"




0200=2.0μm7000=70μm





0300=3.0μm9000=90μm
