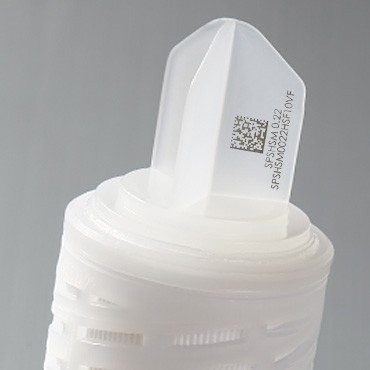

SteriPS Filter Cartridges
Single-layer PES Membrane · Sterilizing Grade

Cobetter SteriPS® Filter Cartridges are specially designed to provide superior flow rates at an economical cost. The unique construction features a high particle removal efficiency. Hydrophilic polyethersulfone membrane cartridges require no prewetting and ready to use. This assures a cost effective device while maintaining excellent performance in the beverage applications.


Features and Benefits

  • Low diffusion flow
  • Inherently hydrophilic PES membrane
  • High surface area design provides excellentlow rates and extended service life while aintaining high bacteria removal efficiency
  • Lower protein binding


Validation Guide

The comprehensive validation guide is available upon  request.

  • Specifaction
  • Performance
  • Biological Satety
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Materials of Construction

Filter MediumPolyethersulfone
SupportPolypropylene
Core/Cage/End CapsPolypropylene
Effective Filter Area

0.6m2 (6.45ft ) / Φ68-10 inch


Operating Conditions

Maximum Temperature90°C
Max.Differential Pressure4 bar / 21°C
2.4 bar / 70°C
Steam Sterilization (Autoclave)121°C / 30min
Hot Water Sterilization
85°C / 30min




Raliable Microbiological Control

The primary purpose of a membrane filter cartridge in beverage processing is to effectively
control spoilage microorganisms.

Typical Log Reduction Value(LRV)

B.diminutaLactobaccilus
Brevis
Sasharomyces
Cerevisiae
0.1μm>7/cm2N/AN/A
0.2μm>7/cm2N/AN/A
0.45μmN/A>7/cm2N/A
0.65μmN/A>4/cm2>7/cm2
1.2μmN/AN/A>7/cm2

Log Reduction Values are calculated using the following formula:

LRV = log 10(    total number of organisms entering the filter total number of organisms entering the filter)




Integrity Testing Parameters

The Integrity test is a non-destructive test that can be performed
by the user to ensure the filter is installed correctly and ready for operation.

Bubble Point
0.1μm
≥0.38MPa
0.2μm
≥0.32MPa
0.45μm
≥0.2MPa

* 0.45μm (Diffusional Flow ≤25ml/min@1500mbar)


  • Food and Biological Safety

  • Extractables< 30mg per 10 inch
    Endotoxins< 0.25EU/mL
  • Meets the requirements for food contact:  European Regulation (EC) Number 1935/2004

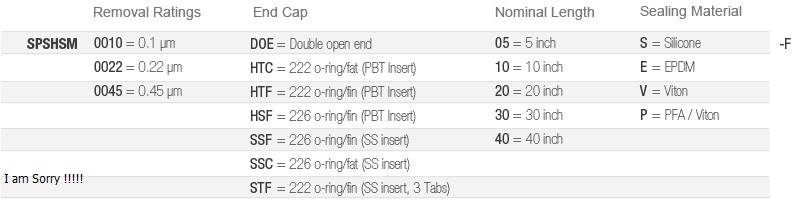

Ordering Information
