AdvanLife Filter Cartridges
Highly Asymmetric PES Membrane · Sterilizing Grade

Cobetter AdvanLife Filter Cartridges feature a urique single-layer, asymmetric hydrophilic polyethersulfone(PES) membrane. This membrane is characterized by High dirt holding capacity, flow rate, and efficiency. Alonger service life significantly redcuces filtration cost and replacement cycle when compared to other PES membrane filter cartridges.

Features and Benefits

  • Highly asymmetric polyethersulfone(PES) membrane has a higher dirt holding capacity and longer service life More than 3x the life time of similar products
  • 100% Integrity Test
  • Provides broad chemical compatibilith (pH 1-14)
  • Available in absolute ratings form 0.1 to 1.2 microns for a range of precise size removal.


  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Raliable Microbiological Control


Typical Log Reduction Value(LRV)

B.diminuta (ATCC19146)
0.1 μm>7 /cm2
0.2 μm>7 /cm2
0.45 μmN/A
0.65 μmN/A
1.2 μmN/A



Materials of Construction


Filter MediumAsymmetric PES Membrane
SupportPolypropylene
Core/Cage/End CapsPolypropylene
Effective Filter Area0.64m2/ 68-10 inch



Operating Conditions

Maximum Temperature90℃
Max. Differential Pressure4 bar/ 21℃
2.4 bar/ 70℃
Steam Sterilization (Autoclave)121℃ / 30min

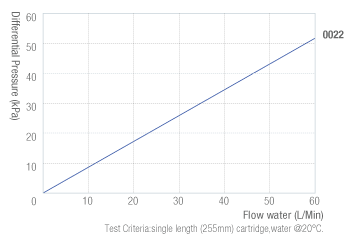

Flow Rate Characteristics

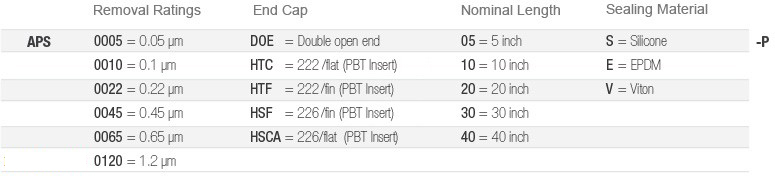

OrderingInformation
