Electronic Grade · Low Extractable

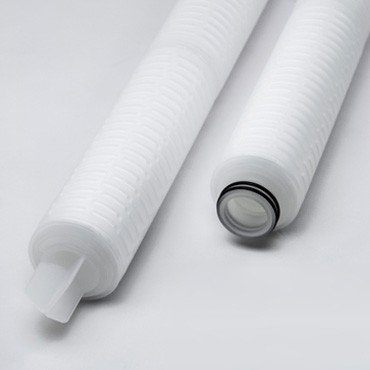

CEPP Filter Cartridge Series

CEPP Filter Cartridges are constructed of electronic grade PP to effectively control iron extraction and provide excellent chemical compatibility. It is highly recommended for the filtration of acids, bases, organic solvents, and process water.

    High-purity PP heated and melted without adhesives during the welding process ensure that electronic grade requirements are met. Its features include low extractable and quick response to conductivity.

High Flow Rates and Long Service Life

    Nano-fiber media provides high flow rates, longer service life, and is cost-effective.

Available in a Wide Range of Pore Sizes

    Available in removal rating from 0.1μm to 25μm as well as customizable removal ratings to meet all requirements and specifications.

Excellent Chemical Compatibility

    An all polypropylene construction provides excellent chemical compatibility to meet the filtration requirements of various acids, bases, and solvents

  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Operating Conditions

Filter MediaPP
End cap /Core/CagePP
Max. Operating Temperature80°C
Max. Differential Pressure0.4 MPa / 21°C
0.24 MPa / 80°C
Filter Area0.1- 0.5μm    0.61 m² / 10 inch
10 - 25μm     0.64 m² / 10 inch

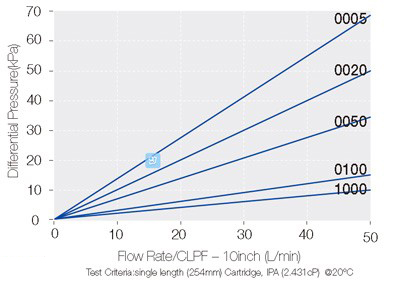

Flow Rate Characteristics

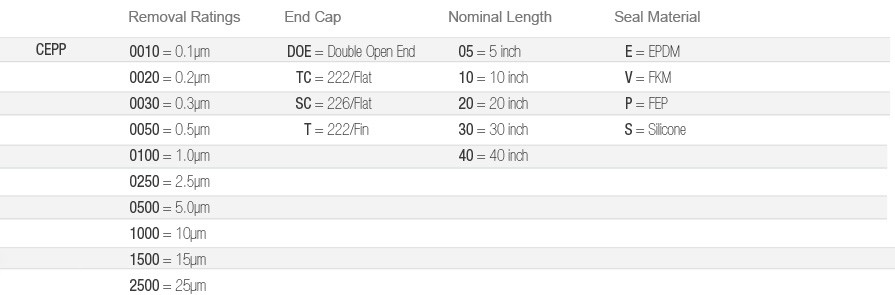

Ordering Information

CEPP Filter Cartridge Series Ordering Information
