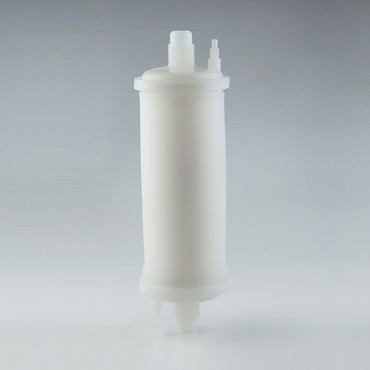

DISP1PFA One-Piece Filter Cartridge Series

Cobetter DISP1PFA Filter Cartridges are designed as a one-piece filter cartridge composed of high purity PFA material. Specially designed for the semiconductor industry, the ultra-low metal ion extractable in the PFA material guarantees filter purity thus avoiding contaminants in the solution. DISP1PFA Filter Cartridges utilize absolute graded pleated PTFE membrane which provides a high filtration efficiency and excellent chemical compatibility making it suitable to filter a wide range of chemicals. They are also available pre-wetted with IPA if needed.

Feature and Benefits

All Polyfuorene with High Purity

Low Pressure Loss

100% Integrity Test

Low Extractable

Excellent Pressure and Temperature Resistance

Suitable for Various Filtration Requirements

  • Specification
  • Performance
  • Ordering Information

Operating Conditions

Filter MediaPTFE
End cap /Core/CagePFA
Length436mm
Diameter122.5mm
Max. Operating Temperature170°C
Max. Differential Pressure0.46MPaG<21°C
0.39MPaG<60°C
0.34MPaG<90°C
0.20MPaG<120°C
0.15MPaG<150°C
0.12MPaG<170°C

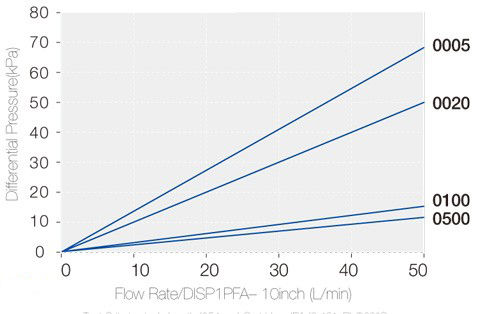

Flow Rate Characteristics

DIS1PFA filter cartridges.jpg
