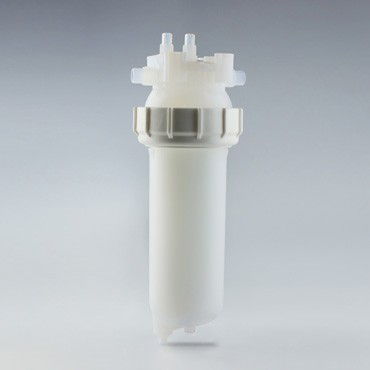

HCPFA Filter Housing Series
Made of High-Purity Resin

HCPFA Filter Housing is composed of high purity PFA material. Specially designed for the chemical filtration in semiconductor industry and FPD industry,the ultra-low metal ion extractable in the PFA material guarantees filter purity thus avoiding contaminants in the solution.

Excellent Chemical Compatibility

Low Extractable

  • No chemicals or colorants are released during the filtration process thus limiting iron extraction.

Excellent Temperature Resistance

  • Specifaction
  • Drawing
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Operating Conditions


Max. Operating Temperature100°C
Max. Differential Pressure0.75MPa @25°C(Static)
0.30MPa @25°C(Static)



Housing BowlPFA
Housing HeadPFA
Locking RingPVDF
ConnectorPFA
O-ringEPDM / FFKM
PlugPFA

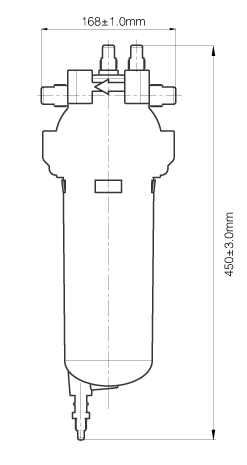

Drawing


OrderingInformation


InIet / OutletFilter ConnectorDrain /Vent
HCPA3/4" flaretek222 connector1/2" flaretek
1/4" flaretek
