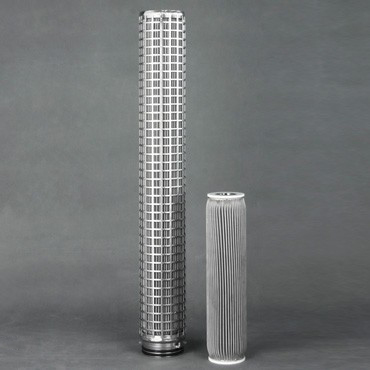

PSSC Pleated Stainless Steel Wire Cloth
Filter Cartridge

Cobetter PSSC Pleated Stainless Steel Wire Cloth Filter Cartridges are composed of 316 stainless steel wire cloth. The pleated structure provides a large filtration larea, which results in longer service life and high flow rates.

PSSC Filter Cartridge has superior strength and thermal resistance, which makes it the ideal filter for high pressure and temperature applications.

Features and Benefits

  • ALL-Stainless Steel Construction
  • Pleated Wire Cloth
  • Inside Support Layer
  • Outside Protection Net Available
  • Homogenous Pore Sizes
  • High Temperature; Corrosive and Oxidation Resistant
  • High Pressure Back-Flushing Available
  • Able to be Cleaned and Reused
  • No Fiber Releasing


  • Specifaction
  • Performance
  • Ordering Information

For technical data sheet or application inquiry, you are more than welcome to contact our sales representative by sales@cobetterfilter.com or leave a message

Materials of Construction

Inside Support Layer304/316 Stainless Steel
Filtration Medium304/316 Stainless Steel
End Cap304/316 Stainless Steel
Outside Protection
Net(Optional)

Outside protection net recommended when the operating pressure is up

to 0.2 MPa

Note: For filters with removal ratings of over 20μm only 316L stainless steel is available

Configurations

Double Open-End (DOE)
Single Open-End (SOE)

Operating Conditions

Maximum Differential Pressure8.6 bar
Maximum Operating Temperature480°C

Nominal Dimensions

Diameters65mm

Additional Diameter Specifications Available Upon Request


Parameters

CodeRemoval
Ratings(μm)
Removal
Ratings(μm)
Pore EfficiencyAbsolute Removal
Rating(μm)
Average Air Permeability
(L/dm²min)
Flow Rate
(m³/h)
12.00.838%8-92.351.8
25.0112-142.422.0
310316-183.002.1
4201528-324.502.5
5402558-637.103.5
610085125-13016.205.0

Testing Performed According to GB/T5453; Testing DP is 200Pa; Testing Medium is Air

Testing Liquid Viscosity is 1CP.S; Filter Tested with 60mm diameter and 300mm length; Testing Pressure is 1.5 bar

Bekaert Filtration Media

Length and Area

LengthFiltration Area
5 in. (127 mm)0.096m²
10 in. (254 mm)0.19m²
20 in. (508 mm)0.38m²
30 in. (762 mm)0.57m²
40 in. (1016 mm)0.76m²

Length and Other Sizes Are Customizable

Tested Filter Diameter is 65mm
