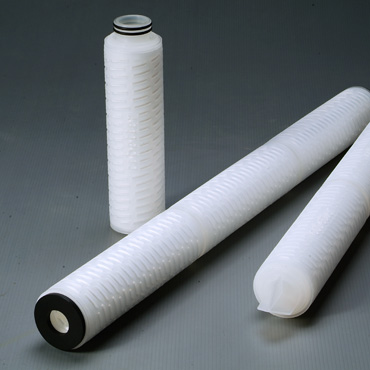

Cobetter ChemfineN66 Filter Cartridges are constructed of Nylon 66 membrane and widely used in dye-based ink filtration applications. Nylon66 membrane is naturally hydrophilic with broad chemical compatibilities. DN66 series , which is a double-layer membrane design, is also available.
- Naturally hydrophilic Nylon membrane provides high flow rate.
- High filtration area combined with low pressure drop.
- Provides broad chemical compatibility. Suitable for all kinds of solvent and chemical filtration.
- DN66 Series ensures high efficiency with longer life time.
| Filter Medium | Nylon 66 Membrane |
| Support Layer | PBT |
| Core/Cage/End Caps | Polypropylene |
| O-Rings | Please refer to ordering information |
| Effective Filtration Area | N66 0.69 m² /10 inc DN66 0.69 m² x 2 /10 inchh |
| Max. Operating Temperature | 70°C |
| Max. Differential Pressure | 4.0 bar / 21°C 2.1 bar / 70°C |
Removal Rating | 0.1μm /0.22μm /0.45μm |
0.1μm | 0.22μm | 0.45μm | |
Bubble Point ( in wanter @23°C ) | ≥ 3.8 bar | ≥ 3.4 bar | ≥ 1.8 bar |
| Removal Ratings | End Cap | Nominal Length | Seal Material | -C | ||
N66 | 0010=0.1μm | DOE=Double Open End | 05= 5" | S=Slilicone | ||
| 0022=0.22μm | TC=222 O-ring/Flat | 10= 10" | E=EPDM | ||
| 0100=1.0μm | TF=222 O-ring/Fin | 20= 20" | V=Viton | |||
| SF=226 O-ring/Fin | 30= 30" | P=Encapsulated Viton | ||||
| SC=226 O-ring/Flat | 40= 40" | |||||
| DN66 | 1010=0.1+0.1μm | |||||
| 2222=0.22+0.22μm | ||||||
| 4522=0.45+0.22μm | ||||||
| 4545=0.45+0.45μm |
