Chemega High-Efficiency Flitration for Chemicals

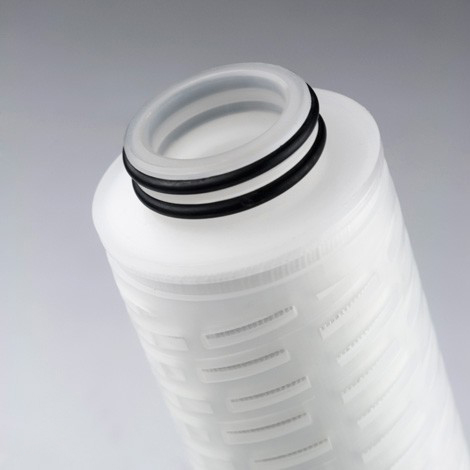

ChemegaTM is constructed of a PTFE membrane that provides great chemical compatibility and is inherently hydrophobic. It is specically designed to limit iron extraction so that it meets the requirements of chemicals and organic solvents in the electronics industry.


ChemegaTM Filter Cartridge Series constructed of a hydrophilic PTFE membrane that is ready-to-use to lter polar solvents without the need for pre-wetting.


  • Specification
  • Performance
  • Ordering Information


Product Specification


Filter MediumPTFE / Hydrophlic PTFE
Core/End CapsPP
Max. Operating Temperature80°C
Max. Operating Pressure

0.4 MPa / 21°C

0.24 MPa / 80°C

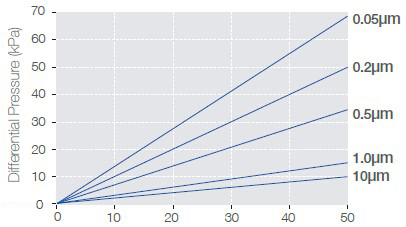

Flow Rate Characteristics

Chemega High-Efciency Filtration for Chemicals Flow Rate Characteristics

                                                          Flow Water / 10"( L/min )
