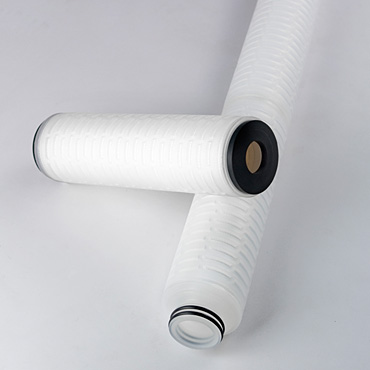

CEPP Filter Cartridges are constructed of electronic grade PP to effectively control iron extraction and provide great chemical compatibility. It is highly recommended for the pre-filtration of acids, bases, organic solvents, and process water.
Low Extractable and Quick Response to Conductivity
High-purity PP heated and melted without adhesives during the welding process ensure that electronic grade requirements are met. Its features include low extractable and quick response to conductivity.
Available in a Wide Range of Pore Sizes
Available in removal rating from 0.1μm to 25μm as well as customizable removal ratings to meet all requirements and specifications.
High Flow Rates and Long Service Life
Nano-fiber media provides high low rates, longer service life, and is cost-effective.
Great Chemical Compatibility
An all polypropylene construction provides great chemical compatibility to meet the filtration requirements of various acids, bases, and solvents.
| Filter Media | PP |
| End cap /Core/Cage | PP |
| Max. Operating Temperature | 80°C |
| Max. Differential Pressure | 0.4 MPa / 21°C 0.24 MPa / 80°C |
Effective Filter Area | 0.1-0.5 μm 0.61 m² / 10 inch 10-25 μm 0.64 m² / 10 inch |
| Removal Ratings | End Cap | Nominal Length | Seal Material | ||||
CEPP | 0010=0.1μm | 0250=2.5μm | DOE=Double Open End | 05= 5" | S=Slilicone | -E | |
| 0020=0.2μm | 0500=5.0μm | TC=222 / Flat | 10= 10" | E=EPDM | ||
| 0030=0.3μm | 1000=10.0μm | TF=222 / Fin | 20= 20" | V=Viton | |||
| 0050=0.5μm | 1500=15.0μm | SC=226 / Flat | 30= 30" | P=FEP | |||
| 0100=1.0μm | 2500=25.0μm | SF=226 / Fin | 40= 40" | ||||
