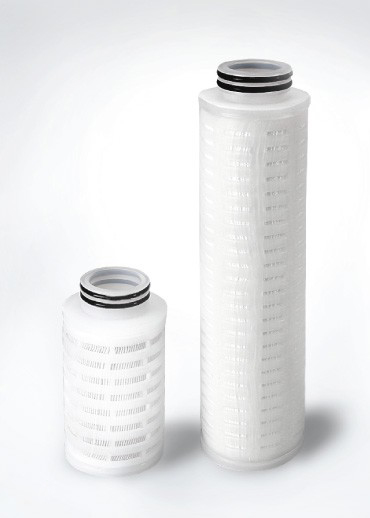

GTP Filter Cartridges designed especially for use in semiconductor processed gas filtration. They utilize expanded PTFE membrane and PFA core and cage, which are high-temperature and oxidation resistant. The high-density pleated design guarantees high flow rates with low-pressure drop.
Expanded PTFE membrane and PFA core & cage provide superior resistance during semiconductor filtration process.
High-density pleated technology provides ultra-large filter area.
PTFE membrane provides absolute removal rating of 0.003μm to meet stricter requirements
Inherently hydrophobic PTFE membrane provides exceptionally high flow rates with low-pressure drop.
| Filter Medium | PTFE |
| Core / Cage / End Caps | PFA |
| Max. Operating Temperature | 170 ℃ |
| Max. Different Pressure | 4.0 bar /21℃ 3.0 bar / 110℃ 1.3 bar / 170℃ |
| Removal Ratings | End Cap | Nominal Length | Seal Material | |||
GTP | 00003=0.003μm | TC=222 / Flat | 05= 5" | P=FEP | -E | |
| 0001=0.01μm | 10= 10" | ||||
| 0010=0.2μm | ||||||
| 0020=0.2μm | ||||||
